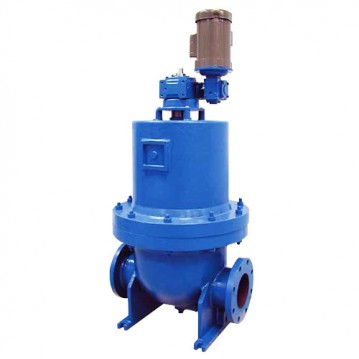

The Model 2596 automatic self-cleaning strainer, designed for the continuous removal of entrained solids from liquids in pipeline systems, is available in sizes 2″ through 8″ in cast construction and 10″ through 60″ in fabricated construction. Design and construction are in general accordance with ASME Sec. VIII, Div. 1. A wide range of screen designs and perforation/mesh sizes are available, as well as custom designs and exotic materials.

The Eaton 2596 automatic self-cleaning strainer is a motorized unit designed for the continuous removal of entrained solids from liquids in pipeline systems, preventing damage to expensive pipeline system components. It features the unique idL™ shaft seal that positively prevents leakage from the backwash shaft at the top of the strainer. Eaton’s Cast Model 2596 Automatic Self-Cleaning pipeline strainers 2″ to 8″ are available in cast iron or stainless steel. The strainers are available 2”, 3”, 4”, 4”L, 6”, and 8” sizes and feature Eaton’s Cenpeller™ Technology, which consists of a unique vane plate positioned at the inlet of the strainer element where it contacts the flow before it enters the element.

Features

  • Flow rates up to 1800 gpm (409 m3/hr)
  • A broad selection of screen options
  • Automatic backwashing for operator-free service and minimal backwash effluent
  • Exclusive idL™ Shaft Seal for long-lasting leak free service life, available up to 24″ only
  • Unitized modular assembly for easy maintenance
  • Cenpeller technology for more efficient and complete backwashing

Applications

  • Process Industry
  • Power Industry
  • Pulp & Paper Industry
  • Sewage and Water Treatment Plants
  • Primary Metal Industry
  • Irrigation/pump house
