AFR
High Performance and High Volume
AFR

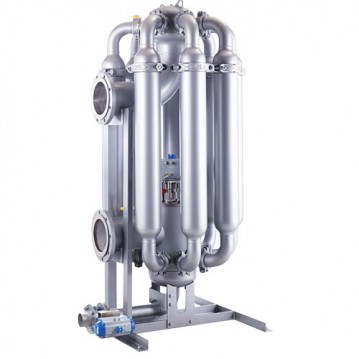

The AFR – Series tubular backwash filter is a unique, expandable circular design for increased capacity in a compact one-square-meter footprint. The AFR-Series uses Ronningen-Petter technology for ideal for high volume, low viscosity applications with retentions as low as 2 microns.
Features
- Solids removal from 1 to 1,700 microns
- Flow rates up to 2,000 gpm (454 m3/hr)
- Broad selection of filter media materials and retentions
- Numerous automated backwash options
- Smooth pipe and nozzle connection transitions
- Isolated top-to-bottom backwash flow
- Available ACCUFLUX™ media
- Configured with an array of up to eight – 4″ (101.8mm) or 6″; (152.4 mm) body tubes
Applications
- Chemicals & Ethanol
- Food and Beverage
- Manufacturing
- Oil and Gas
- Pulp and Paper
- PetroChem
- Pharmaceuticals
- Water
Downloads
Brochures
Technical Data Sheets
- Choosing the Best Filtration Method for Your Liquid Processing Application
- Eaton Tubular Backwashing Technical Information
Product Specs
- Eaton Tubular Backwashing AFC-Series Filters
- Eaton Tubular Backwashing Components & Options
- Eaton Tubular Backwashing Filter Media
- Eaton Tubular Backwashing Filters Introduction
Drawings
- Tubular Backwashing Filter Drawings AFR 4 Inch Bodies AFR 3300 IB GA001
- Tubular Backwashing Filter Drawings AFR 6 Inch Bodies AFR 3300 IB GA002
- Tubular Backwashing Filter Drawings AFR 4 6 Inch Bodies AFR 3300 IB GA003
- Tubular Backwashing Filter Drawings AFR Replacement Parts AFR 3300 IB PA001
- Tubular Backwashing Filter Drawings AFR Pneumatic Schematic AFR 3300 IB PS001
